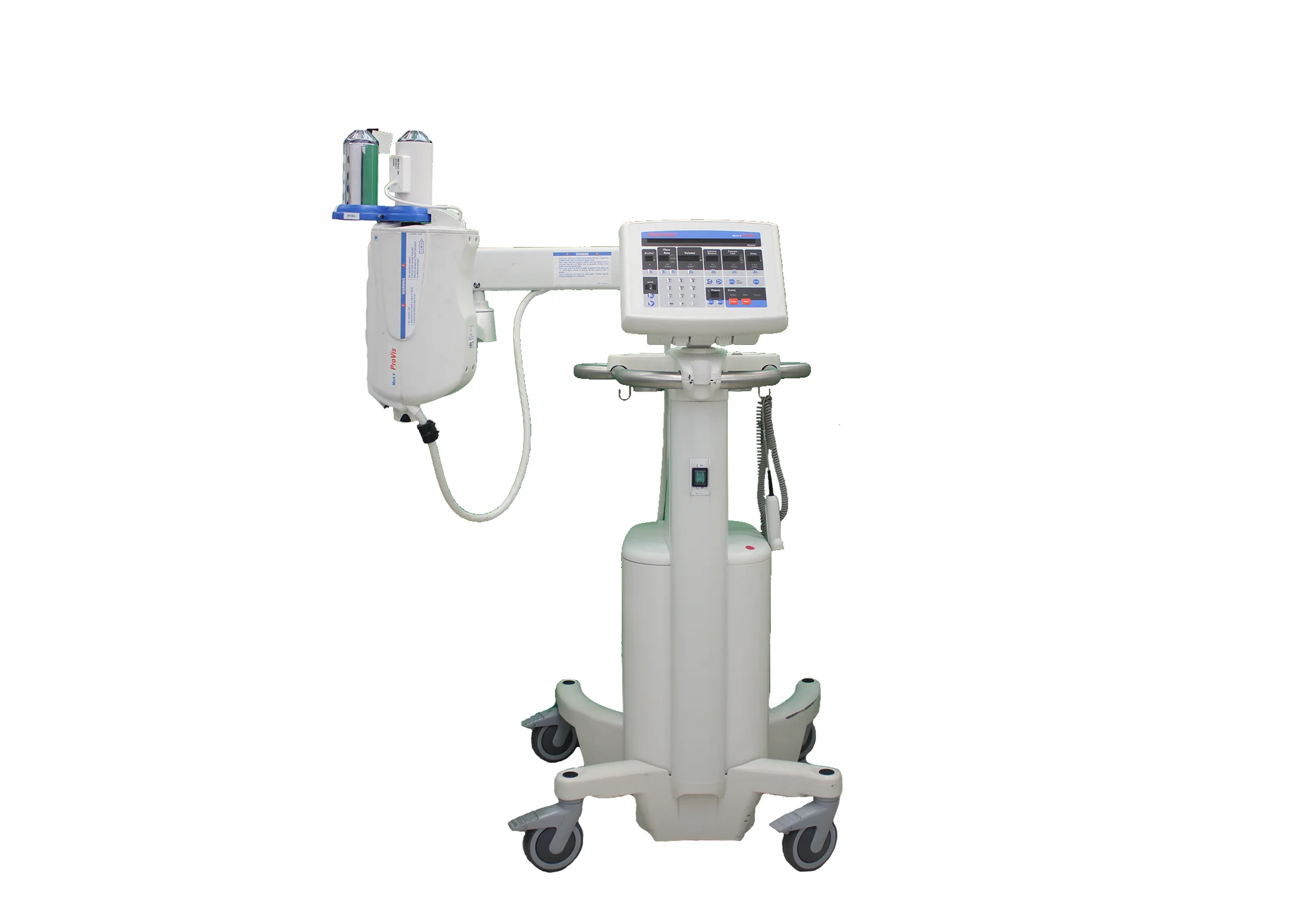

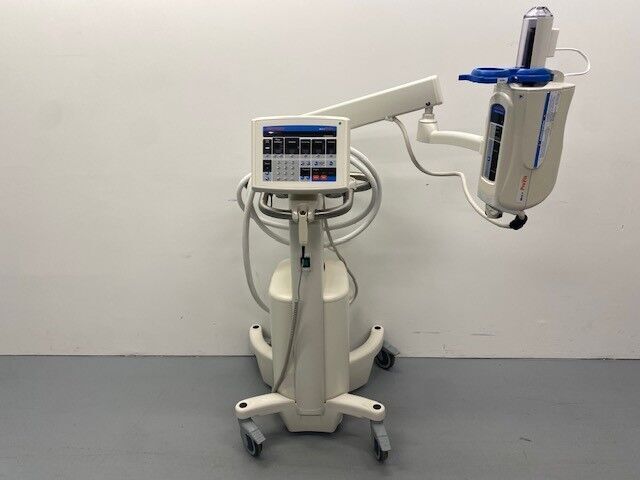

Medrad Mark V Provis

Get pricing on a refurbished or used Medrad Mark V ProVis Contrast Injectors system today. All injectors are complete and fully tested. We can accommodate next-day shipping via parcel (if no pedestal) and freight (if pedestal included). Call or email us for pricing.

Get a Quote Today on a used or refurbished Medrad Mark V ProVis contrast injector - Call 216-600-0801 or email

Injector Options for Sale:

  • Used Medrad Mark V ProVis
  • Refurbished Medrad Mark V ProVis

Service Options for the Medrad Mark V ProVis Contrast Injectors :

  • Preventative Maintenance
  • Calibration Verificaiton
  • On-Site Service/ Repair
  • Mail-In/ Depot Repair


The Medrad Mark V ProVis Is an Angiographic injection system. The Medrad System injects with Contract mediums or fluid solutions intravenously into the human body. The Mark V ProVis comes with a microprocessor that can help prevent over injections, overflow and overpressure in the patient. The ProVis injection system offers a rotating and tilting control panel and articulation arm for the injector head. With an easy to use control panel, you can select various speeds to make for faster loading and easier delivery of the injection. The Mark V ProVis can be used in both Cardiology and angiography laboratories and can be used on both adult and pediatric patients.

  • Height adjustable arm for ease in loading syringes
  • Large Rotating, tilting control panel is easy to see and read from almost any position in the room
  • Multiple syringe configurations (60/150 ml - 150/150 ml - 200/200 ml) help to match the right syringe size with the patient and procedure
  • Floor, ceiling or wall mount options add flexibility
  • Segmented control panel is easy to learn and operate
  • “One Touch” enable button and variable speed control for fast loading and easy delivery
  • Large, secure handle and oversize wheels allow for easy maneuvering in the tightest situation
  • Speed control maximizes air management and loading efficiency
  • Integrates easily with any imaging system for clear images with less contrast and less radiation exposure

  • Whether in traditional diagnostic or interventional procedures, you'll find
  • Medrad Mark Vs being used in cardiology and angiography all around the world. They’ve earned a reputation for delivering contrast to both pediatric and adult patients reliably, easily, and safely
  • Designed to be easy to use, from the readability of the display and controls to the ergonomics and functionality of the injector and control panel

Get a Quote Today - Call 216-600-0801 or email

Select from angiographic syringes in the following three sizes:

  • 60ml- the smallest angiographic syringe available- allows the tightest bolus possible, for precise low volume studies such as coronary, neurological, and pediatric
  • 150ml syringe for high volume procedures such as Aortic, Hepatic Left Ventricular, and Peripherals
  • 200ml syringe for multiple studies


  • Dimensions:
  • Height: 10.5 in (27 cm)
  • Width: 19 in (48 cm)
  • Depth: 12.6 in (32 cm)
  • Weight: 45 lbs. (20.4 kg)

  • Weight:
  • Pedestal System: 213 lbs (97 kg)
  • Injector head: 21.5 lbs (9,8kg)
  • Pedestal System without head: 191.5 lbs (87,2 kg)
  • Control Room Console without head: 45 lbs (20,4 kg)
  • Remote Control Panel without cable: 10.5 lbs (4,8 kg)

  • Injector Head:
  • Load Speed: forward or reverse 5-10 ml/sec.
  • Syringe Heater: 37°C (98°F) nominal
  • Syringes: Disposable: 60 ml, 150 ml or 200 ml
  • Selected Volume before each injection:
  • 1.5 ml with a 60 ml syringe
  • 2.5 ml with a 150 ml syringe
  • 4.0m ml with a 200 ml syringe

  • General:
  • Single Use (Syringes): Yes
  • Type (Configuration): Angiographic
  • Power, VAC (Synchronization): 100-240
  • X-Ray Generator (Power Needed, VAC): Yes
  • Flow Capabilities mL/Sec: 0.3-50; 1-59 mL/min, 10-59 mL/hr
  • Capacity Range, mL: 1-60, 1-150, 1-200
  • Range, bar (psi) (Output Pressure): 6-82 (100-1,200)
  • Drive system (Configuration): Electromechanical

Get a Quote Today - Call 216-600-0801 or email
