About the Siemens MAGNETOM Avanto 1.5T MRI Scanner

Medco Blue can quote your health facility with a refurbished or used Siemens MAGNETOM Avanto 1.5T MRI scanner, including installation, calibration, applications training, and service. Below you will find general information and specs related to the Siemens MAGNETOM Avanto 1.5T. We look forward to the opportunity to quote you this MRI scanner. Contact us at 216-600-0801 and today.


Product Description:

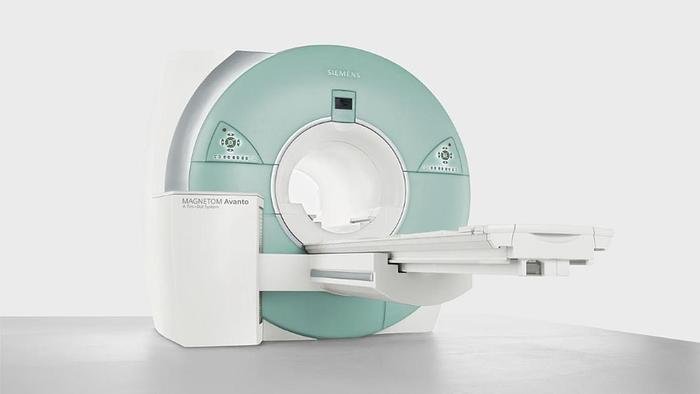

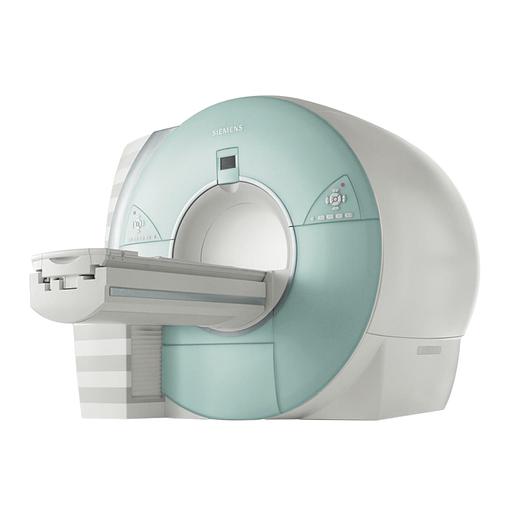

The Siemens MAGNETOM Avanto 1.5T MRI system is a whole body scanner, with exceptional flexibility, speed, and accuracy for a wide range of clinical applications.  This scanner features the Dot + Tim (Total Imaging Matrix) RF system with 8, 18, or 32 available independent RF receiver channels.  The Tim concept allows you to combine elements from physically separate coils without patient repositioning or coil changes, for shorter exams and greater patient comfort.  With the integration of Dot, the power of Tim is multiplied resulting in greater image consistency and diagnostic confidence, greater ease-of-use, and productivity.


  • Tim+Dot integrated
  • Landmark in technology
  • Landmark in applications


  • Strong medical diagnostic confidence due to outstanding magnet homogeneity for exceptional fat saturation
  • Large Field of View: 50 cm FOV
  • Strong gradients for high resolution imaging and shorter scan durations
  • Siemens Tim system providing unrivaled clinical flexibility, imaging accuracy and speed
  • Short-bore, compact
  • Q-Engine and SQ-Engine gradient system
  • ECG/peripheral, respiratory gating for synchronization
  • 5cm – 50cm field of view
  • 60cm Bore
  • 5 Tesla field strength
  • Up to 97 % acoustic noise reduction
  • Wide, patient-friendly inner bore diameter (60 cm / 2 ft.)
  • Q-engine (33 mT/m at 125 T/m/s) or SQ-engine (45 mT/m at 200 T/m/s) with 50 cm field of view (FOV)
  • Slew rate up to 200 T/m/s
  • Reconstructs up to 3226 images per second
  • Ultrafast, highly compact, water-cooled gradient amplifier
  • syngo speaking user interface
  • Sites in only 325 sq.ft. floor space
  • Two CPUs with 3 GHz and 2 GB RAM capacity




  • Angiography
  • Breast
  • Cardiac
  • Neurology
  • Oncology
  • Orthopedic
  • Pancreatic
  • Pediatric
  • Pelvis
  • Pulmonary
  • Vascular Imaging
  • Whole Body Imaging


Fat Saturation:

The Avanto 1.5T is perfect for cardiac MRI. With a combination of exceptional parallel imaging with Siemens syngo GRAPPA, strong gradients, and high magnet homogeneity, the Siemens MAGNETOM Avanto 1.5 Tesla MRI scanner is perfect for heart MRI.


Whole Angiography:

Siemens’ Tim coil combinations provide the flexibility to address any FOV up to 205 cm. The system is accurate enough to see tiny vessels and quick from head to toe with Parallel Imaging (TA 1:27 min.)

Siemens Avanto Workflow Innovations:

  • syngo Inline Technology
  • syngo Phoenix
  • syngo PhoenixZIP
  • syngo AutoAlign solutions
  • syngo Expert-i

Available Coils:


  • 16-Channel Al Breast
  • 32-Channel Body
  • 32-Channel Head
  • 4-Channel Bl Breast
  • 4-Channel Flex Coil, Large
  • 4-Channel Flex Coil, Small
  • 8-Channel Foit Ankle
  • 8-Channel Knee
  • 8-Channel Wrist
  • Body Matrix
  • Breast Matrix
  • CP Extremity
  • CP Flex Coil, Large
  • CP Flex Coil, Small
  • CP Head Array
  • Double Loop Array
  • Endorectal Coil Interface
  • Head Matrix
  • Loop Coil, Large
  • Loop Coil, Medium
  • Loop Coil, Small
  • Loop Flex Coil, Large
  • Loop Flex Coil, Small
  • Neck Matrix
  • PA Matrix
  • Shoulder Array
  • Spine Matrix
  • Tx/Rx 15-Channel Knee
  • Tx/Rx CP Head


  • Clinical Use: whole body
  • Gantry (Max. Clearance): 60 cm
  • Magnet Type: superconducting
  • Magnetic Field Strength: 1.5T
  • Patient Weight Capacity: 550 lb
  • Unit Weight: 5502 kg
  • Minimum Room Size: 27 sq. m (length x width) x 2.4 m (height)


Contact us today to get a quote on a refurbished or used Siemens MAGNETOM Avanto 1.5T MRI scanner. Call us at 216-600-0801 or email us at


ModelMAGNETOM Avanto 1.5T
