Description

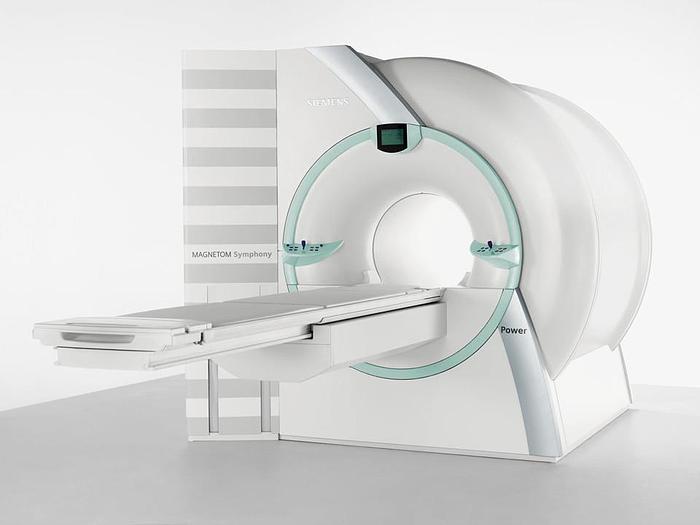

About the Siemens MAGNETOM Symphony TIM 1.5T MRI Scanner


Medco Blue can quote your health facility with a refurbished or used Siemens MAGNETOM Symphony TIM 1.5T MRI scanner, including installation, calibration, applications training, and service. Below you will find general information and specs related to the Siemens MAGNETOM Symphony TIM 1.5T. We look forward to the opportunity to quote you this MRI scanner. Contact us at 216-600-0801 and sales@medcoblue.com today.


GET A QUOTE TO BUY OR LEASE TODAY



Product Description:


The Siemens Symphony 1.5T is among the most affordable and sought-after high resolution MRI scanners in the world. The Siemens Symphony 1.5T combines a patient-friendly design with the benefits of 1.5 Tesla field strength in terms of short imaging time and high anatomical resolution.  Its scalability covers routine to clinical research MRI.  One of the most major benefits of the Siemens Symphony is the lower cost of siting the scanner, requiring only a minimum of 325 square feet, therefore lowering the upfront cost of ownership.  This System offers iPAT for faster, higher resolution scanning and throughput, an RF system that is expandable from 4 to 32* channels for maximum flexibility, upgradable to Siemens Tim technology, syngo┬« for streamlined throughput, and workflow automation.


Each Siemens Symphony 1.5T MRI machine features a set of matrix coils that can flexibly combine up to 76 coil elements for unlimited parallel imaging.  As well as syngo SPACE, which replaces time-consuming multiple 2D acquisitions with a single 3D image, allowing you to visualize very small details.



Features:


  • 60-cm system available in an 18- or 32-channel configuration
  • Open, patient-friendly design
  • Lightweight, comfortable coils
  • Feet-first access into bore
  • iPAT (integrated Parallel Acquisition Technique)
  • High Patient Throughput
  • High Patient Comfort
  • Scalability from routine to clinical research
  • Ease of Use
  • Cost-Effective Siting
  • High Patient Throughput
  • Less Sitting Space Required - Lower Up-Front Cost of Ownership
  • Advanced applications standard, such as REVEAL for whole-body diffusion. For example, REVEAL can be used to detect lesions on the liver and lymph nodes
  • Nine Tim application suites standard, including cardiac, pediatric, and breast
  • Expands upon the Symphony applications, adding additional inline processing such as Inline Diffusion for automated ADC mapping



IPAT (Integrated Parallel Acquisition Technology):


iPAT minimizes scan time up to 75%, permits shorter breath hold times, and ultimately increases patient relaxation. iPAT allows you to perform multiple exams in a single setup, increasing patient throughput and patient satisfaction.



TIM Upgrade:


Tim (Total imaging matrix) coil technology provides superior image quality and faster acquisition speed.  No re-positioning for multiple exams and more exams per day due to whole body coverage.


Your benefits:


  • Exceptional image quality
  • Faster acquisition and exam time
  • Higher SNR



Flexibility:


  • Select exams, not coils
  • Up to 76 matrix coil elements and 32 RF channels
  • Head-to-toe imaging without patient repositioning



Accuracy:


  • Local and total whole-body imaging, while maintaining a high SNR
  • Excellent image quality with high coil density
  • Seamlessly scan up to 205 cm with excellent image quality



Speed:


  • Utilize parallel imaging (iPAT) in all directions
  • High acquisition speed, high resolution
  • Shorter examination times allow increased throughput



Coils:


  • 6-Channel Body
  •  8-Channel Head
  • CP Body Array Flex Coil and Extender
  • CP Breast Array
  • CP Extremity
  • CP Flex, Large
  • CP Flex, Small
  • CP Head Array
  • CP Neck Array
  • CP Spine Array
  • Double Loop Array
  • Endorectal Coil Interface
  • Large FoV Adapter
  • Loop Flex, large
  • Loop Flex, small
  • Peripheral CP Angio Array Coil, Adapter
  • Shoulder Array



Clinical Applications:


  • syngo BLADE
  • syngo SWI
  • Image Fusion
  • Neuro Perfusion Evaluation
  • Composing
  • syngo Expert-i
  • 31 P Spectroscopy
  • 3D PACE
  • 3D VRT
  • syngo Security
  • Advanced 3D Imaging Package
  • Advanced Angio
  • Advanced Turbo
  • Argus Dynamic Signal
  • Argus Flow



Specifications:


  • Ultracompact 1.5T magnet length: 160 cm (5 ft 3 in)
  • Wide, patient friendly inner bore diameter: 60 cm (2 ft)
  • Magnet weight: 4050 kg (8900 lb)
  • Gradient field strength up to 30 mT/m (52 mT/m effective)
  • Slew rate up to 125 T/m/s (216 T/m/s effective)
  • Large field of view up to 50 cm (20 in)
  • Floor space used: 30 sqm / 325 sq ft




GET A QUOTE FOR A SIEMENS MAGNETOM SYMPHONY TIM 1.5T MRI!

Contact us today to get a quote on a refurbished or used Siemens MAGNETOM Symphony TIM 1.5T MRI scanner. Call us at 216-600-0801 or email us at sales@medcoblue.com.

Specifications

ManufacturerSiemens
ModelMAGNETOM Symphony TIM 1.5T
ConditionUsed
