Vieworks VIVIX-S 1417N Wireless Flat Panel Detector (New)

Vieworks VIVIX-S 1417N Wireless Flat Panel Detector (New)

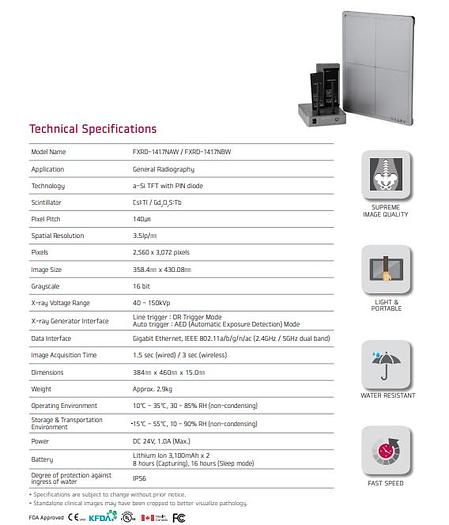

Model Name: FXRD-1417NAW / FXRD-1417NBW

Technology: a-Si TFT with photodiode

Scintillator: CsI:Tl / Gd2O2S:Tb

Pixel Pitch: 140 ㎛

Spatial Resolution: 3.5 lp/㎜

Pixels: 2560 x 3072 pixels

Image Size: 14" x 17" (35.8 ㎝ x 43.0 ㎝)

Grayscale: 16 bit

Image Acquisition Time: Wired: 1.5 s, Wireless: 3 s

Recommended Cycle Time: 10 s

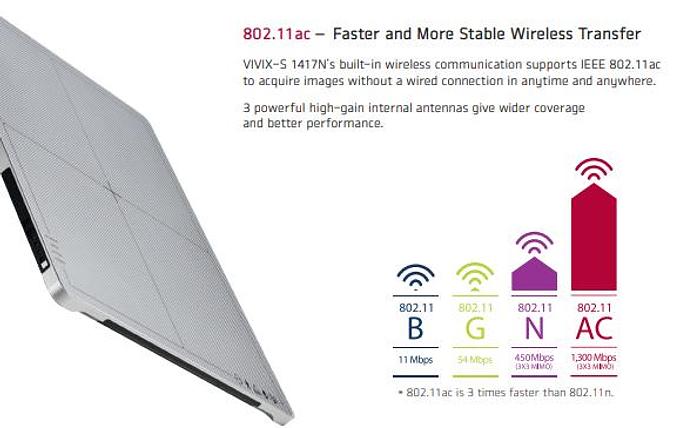

Data Interface: Gigabit Ethernet, IEEE 802.11 a / b / g / n / ac

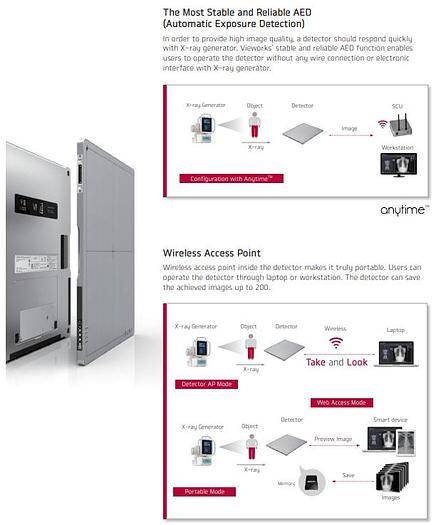

X-ray Generator Interface: Line trigger: DR trigger Mode, Auto trigger: AED Mode

Dimensions: 38.4 ㎝ x 46.0 ㎝ x 1.5 ㎝

Weight: 2.9 kg (including battery)

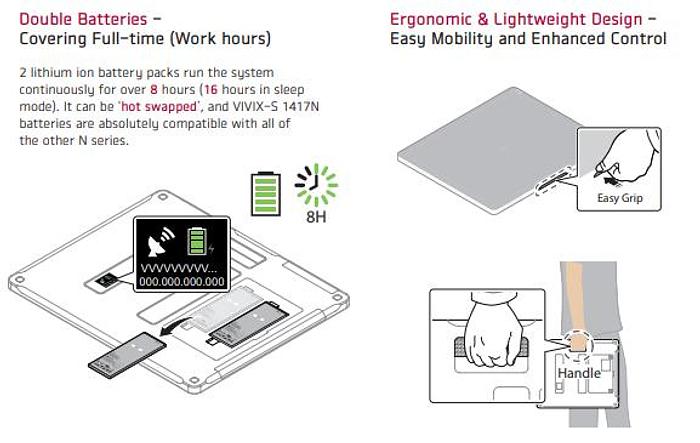

Battery: Lithium Ion 3100 mAh x 2, 8 h (Capturing)

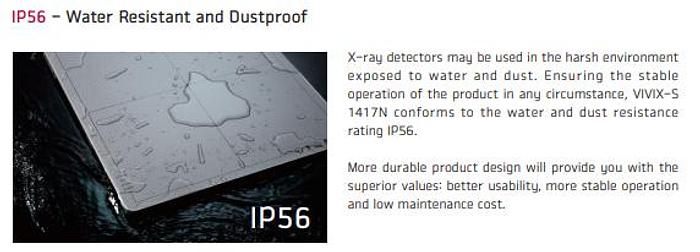

Dust and Water Resistant: IP56

X-ray Voltage Range: 40 - 150 kVp

Operating Environment: 10℃ to 35℃, 30 % to 85 % RH (non-condensing)

Power: DC 24 V, 1.0 A

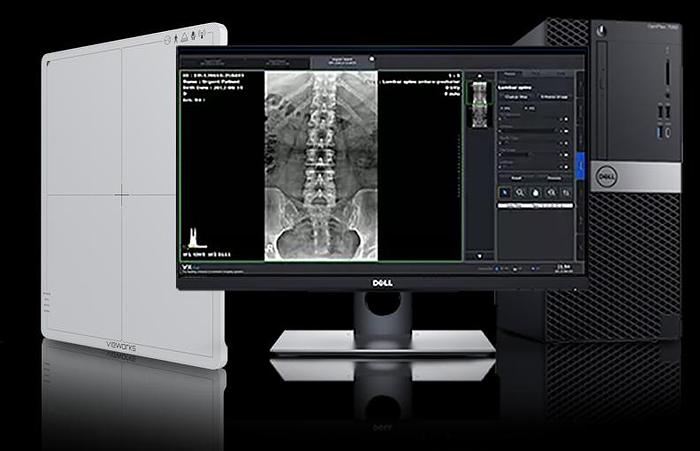

Workstation

Customized Dell Workstation

CPU: Intel i7 Quad Core Processor

RAM: 16GB DDR4

OS: 256GB SSD

DATA: 1TB or 2TB Raid1

24" Touchscreen Monitor

VXvue with PureImpact™ Digital Radiography Acquisition Viewer Software

Warranties:

5-Year Manufacturer Warranty on Panel and Acquisition Workstation
