Rayence X-Cel 715BDXC Podiatry X-Ray

Rayence X-Cel 715BDXC Podiatry X-Ray

orCall (216) 600-0801

Description

Rayence X-Cel 715BDXC Podiatry X-Ray

Bi-Directional Unit

70 kVp

15 mA ONLY

Exposure Hand Switch

Color: White with Tilt Head


*Eliminate the need to rotate the patient to the DP view

*Eliminate the need to rotate the arm for the AP view

*Eliminate the need to readjust the collimator lateral views

*Enable wheelchair patients to be easily accommodated without having to leave the

wheelchair

*Features the low voltage expose switch with optional remote key box

*Include features that can meet ADA guidelines (consult your accountant)

*Tile-Head eliminates the need for patient rotation

*Patient support rail system allows access from side or front

*3.5-inch base height

*29-inch SID

*Available in white

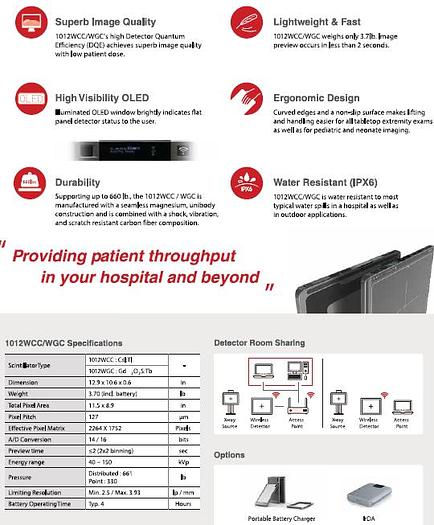

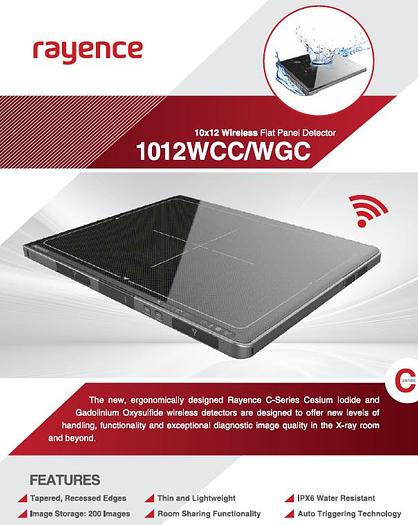

Xmaru 1012WCC Wireless Flat Panel Detector

• Cassette Size Dimensions (W x L X H ) 12.9 x 10.6 x 0.6 in

• CsI: Cesium Iodide (scintillator)

• a-Si: (Amorphous Silicon) readout layer

• 3.7 (Including Battery) lbs

• Carbon-fiber, seamless unibody construction combined with a shock, vibration and scratch

resistant composition

• 127μm Micron Pixel Pitch

• 2,264 x 1,752 pixel matrix

• 11.5 x 8.9 inch Active Pixel Area

• Limiting Resolution: Min. 2.5/ Max. 3.93 lp/mm

• Energy Range: 40 - 150 kV

• A/D Conversion: 14/16 bits

• Preview Time: < 2.0 sec

• Auto-Trigger (AED) Technology

• Wireless: Built in Access Point (AP) with 25' range


Batteries & Charger:

• Three (3) Lithium Ion batteries

• 900 images (@ cycle time: 15s). The batteries last 4 hours and are rechargeable.

• Single Slot battery charger

• Charging Time: 2.5 hours


Wireless Network Router

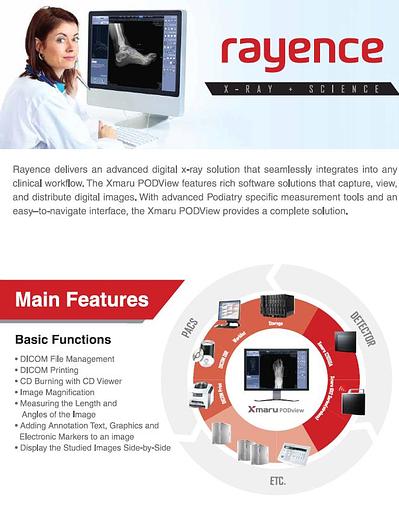

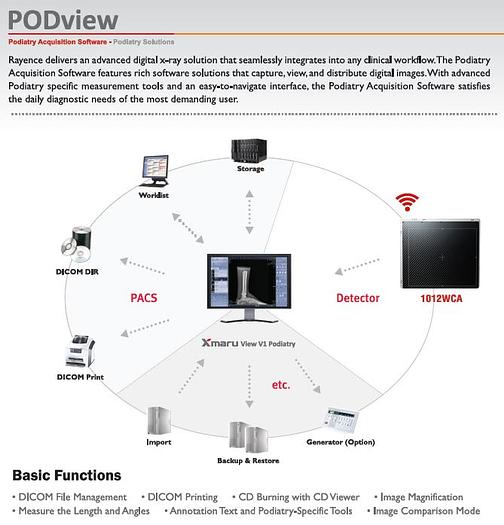

Xmaru PODView Podiatry Acquisition Software

Key Features

• Podiatry Specific Exposure Exam List

• DICOM Modality Worklist, DICOM Storage, DICOM Send, DICOM Print

• Common Exam Study Feature (i.e. 2 view foot, 4 view ankle, etc.) Short Cut Keys

• Low Exposure Optimization

• Exposure Index

• Analysis Statistics Report (ASR): tracks image acceptance, rejections, retakes and deletion

• CD/DVD or thumb drive burning with Mini Viewer

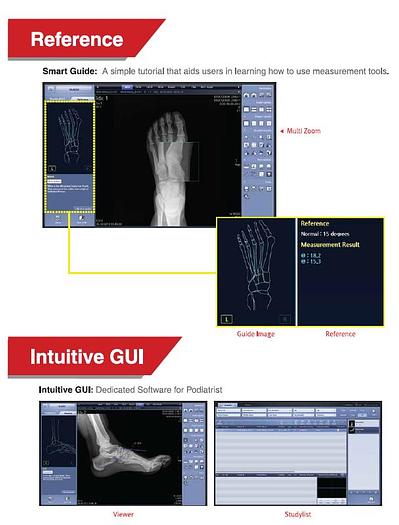

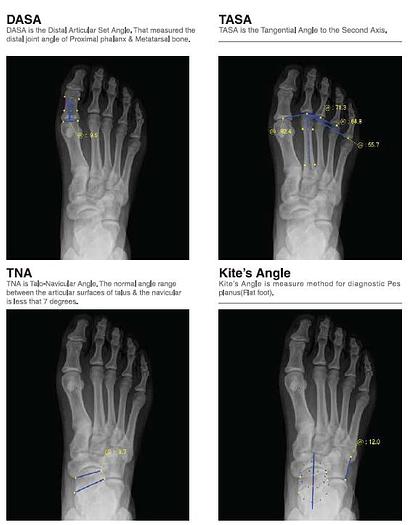

• Annotations including Text, Distance, Measurements, Angles

• Comments, Electronic Markers etc.

• W/L, Flip, Rotate, Zoom, Pan, Invert Greyscale, Image Magnification

• Enhanced image processing parameters

• Comparison Mode - Click and drag images to view them side by side

• Send to multiple PACS destinations having different compression formats


Mini-PACS

• Includes ten (10) concurrent licenses, which can be upgraded up to twenty (20)

• Requires no static IP addresses on workstations other than on the acquisition workstation

• Comes with annotations and markers that can be applied and viewed by any user

• Specialty Measurement Tools


Acquisition Workstation

• OptiPlex 7090 SFF MLK

• Intel vPro Technology Enabled

• Intel Integrated Graphics, Dell OptiPlex

• 500GB M.2 NVMe SSD

• 16GB (2x8GB) 2666MHz DDR4 Memory

• Intel® Core™ i5-10500/i5-11500 (6 Cores/9MB/6T/3.0GHz to 4.4GHz/65W);

supports Windows 10/Linux

• 2nd Intel Gigabit NIC PCIe Card (Low Profile)

• 2nd 1TB 2.5 inch SATA (7200 Rpm) Hard Drive, OptiPlex

• TPM Enabled

• OptiPlex System Power Cord

• Bracket for 2.5 inch Hard Drive Disk, Mini Tower, OptiPlex

• Cyberlink Media Suite Essentials for Windows 10 and DVD drive (without Media)

• 8x DVD+/-RW 9.5mm Optical Disk Drive

• ODD Bezel, Small Form Factor

• 2nd 2.5” HDD Caddy with Cable Small From Factor

• Intel Core i7 vPRO Label

• Dell Developed Recovery Environment

• Waves Maxx Audio

• OptiPlex 7090 Small Form Factor with 200W up to 92% efficient

Power Supply

• Black Dell KB216 Wired Multi-Media Keyboard English

• Black Dell MS116 Wired Mouse

• Win 10 Pro 64 English, French, Spanish

• ProSupport for Dell Data Protection Endpoint Security Suite Enterprise, 1 Year

• ProSupport: Next Business Day Onsite 3 Years

• ProSupport: 7x24 Technical Support, 3 Years

• Dell Limited Hardware Warranty Plus Service


Non Touch Screen Monitor:

• Dell P2418H or similar

• Full HD (1080p) 1920 x 1080 at 60Hz

• Aspect Ratio 16:9

• Pixel Pitch 0.2745 mm

• Pixel Per Inch 93

• Brightness 250 cd/m²

• Contrast 1000:1

• Pixel Per Inch 93

• Display Type LED-Edgelight System

• Item Dimensions 21.2 x 7.2 x 19.5 in with stand

• Diagonal Size 23.8 inches

• Built-in Devices USB 3.2 Gen 1 hub


Warranties included:

3-Year on Manufacturer Defects on the Detector Only

3-Year on Acquisition Software to Include Updates

3-Year of Remote Technical Support

3-Year on Dell Manufactured Computer Hardware

3-Year on X-Cel Manufactured Mechanical (if applicable)

3-Year on X-Cel Electrical Pro-Rated (if applicable)

1-Year on Battery Charger

6-Month on Battery

Specifications

ManufacturerRayence
ModelX-Cel 715BDXC
ConditionNew
Stock NumberS5MO5T0223
