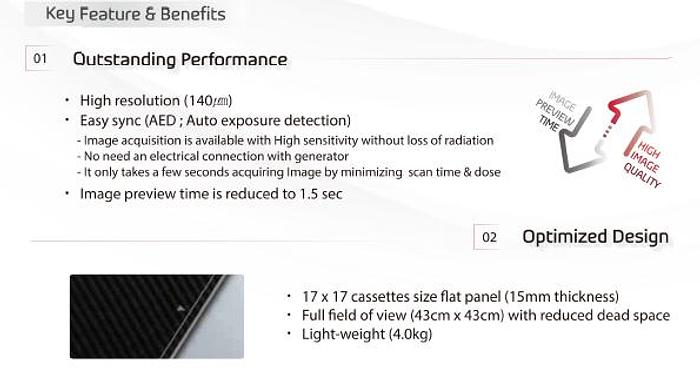

Rayence 1717SCV Tethered Flat Panel Detector (New)

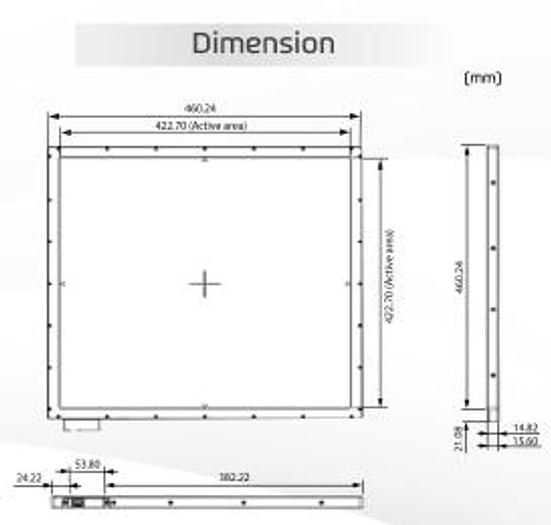

17"x17" Cassette Sized

CsI: Cesium conversion layer (scintillator)

a-Si: (Amorphous Silicon) readout layer

Auto Trigger (AED) Mode

140μm Micron Pixel Pitch

3072 x 3072 pixel matrix

3.5 lp/mm

A/D Conversion: 14-bit

Energy Range: 40~150 kVp

Image Preview <3 seconds

Power Supply


Dell 24 Monitor -P2422H

Device Type

White LED edgelight system


Aspect Ratio



Native Resolution

1920 x 1080 at 60 Hz

Pixel Pitch

0.2745 mm x 0.2745 mm



250 cd/m² (typical)

Contrast Ratio

1000:1 (typical)


Response Time

5 ms typical (Fast) (gray to gray)

8 ms (Normal mode) (gray to gray)

Color Support

16.7 Million


Screen Coating


Dimensions (WxDxH) - with stand

21.17 inches x 7.07 inches x 19.53 inches


Non Touch Screen


Compliant Standards

ENERGY STAR certified monitor.


Diagonal Size

23.8 inches


7.47 lbs


Acquisition Workstation

OptiPlex 7070 SFF MLK

Intel vPro Technology Enabled

Intel Integrated Graphics, Dell OptiPlex

2.5 inch 1TB 7200rpm Hard Disk Drive

16GB (2x8GB) 2666MHz DDR4 Memory

Intel Core i5-9500 (6 Cores/9MB/6T/3.0GHz to 4.4GHz/65W); supports Windows 10/Linux

2nd Intel Gigabit NIC PCIe Card (Low Profile)

2nd 1TB 2.5 inch SATA (7200 Rpm) Hard Drive, OptiPlex

TPM Enabled

OptiPlex System Power Cord

Bracket for 2.5 inch Hard Drive Disk, Mini Tower, OptiPlex

Cyberlink Media Suite Essentials for Windows 10 and DVD drive (without Media)

8x DVD+/-RW 9.5mm Optical Disk Drive

ODD Bezel, Small Form Factor

2nd 2.5  HDD Caddy with Cable Small From Factor

Dell Developed Recovery Environment

Waves Maxx Audio

OptiPlex 7070 Small Form Factor with 200W up to 92% efficient Power Supply

Black Dell KB216 Wired Multi-Media Keyboard English

Black Dell MS116 Wired Mouse

Win 10 Pro 64 English, French, Spanish

ProSupport for Dell Data Protection Endpoint Security Suite Enterprise, 1 Year

ProSupport: Next Business Day Onsite 3 Years

ProSupport: 7x24 Technical Support, 3 Years

Dell Limited Hardware Warranty Plus Service

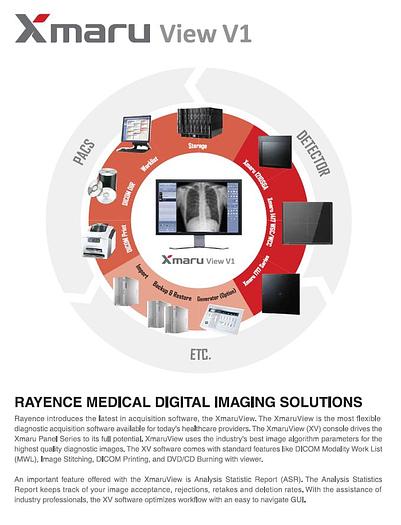

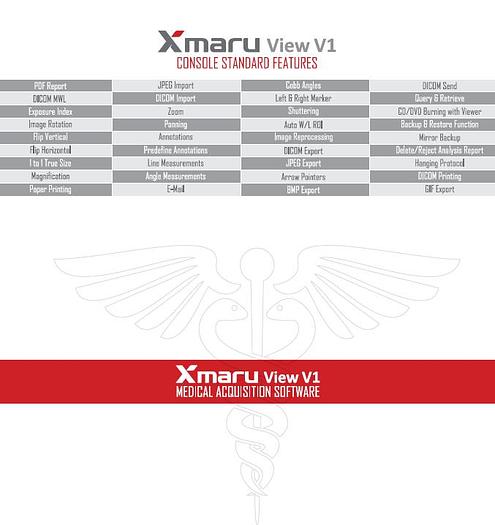

XmaruView V1 Acquisition Software - Medical

Medical Specific Exposure Exam List

DICOM Modality Worklist, DICOM Storage, DICOM Send, DICOM Print     -HL7 Receiver

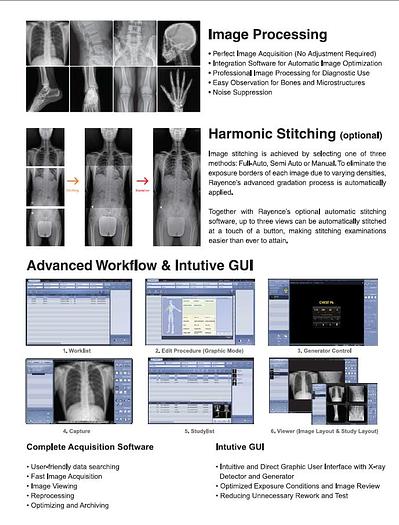

Image Stitching feature (Optional)

Low Exposure Optimization

Exposure Index

Analysis Statistics Report (ASR): tracks image acceptance, rejections, retakes and deletion

CD/DVD or thumb drive burning with Mini Viewer

Annotations including Text, Distance, Measurements, Angles, Comments, Electronic Markers

W/L, Flip, Rotate, Zoom, Pan, Invert Greyscale, Image Magnification

Basic security features - customized technologist log in/log out & user restrictions

Enhanced image processing parameters

Wireless signal on wireless panel

Detector battery indicator

Selectable GPR (Grid Pattern Removal) applications

Comparison Mode - Click and drag images to view them side by side

Send to multiple mini PACS destinations having different compression formats MiniPACS

Includes Ten (10) concurrent licenses, which can be upgraded up to twenty (20)

Requires no static IP addresses on workstations other than on the acquisition workstation

Comes with annotations and markers that can be applied and viewed by any user

Specialty Measurement Tools


Xmaru RadViewer Viewing License

• CD/DVD Burning with Mini Viewer

• Annotations including Text, Distance, Measurements, Angles

• Comments, Electronic Markers etc.

• Image Manipulations Flip, Rotate, Zoom, Pan, Invert Greyscale

• Window and Contrast Level, etc.



5-Year on Manufacturer Defects on Detector

5-Year Rayence acquisition software to include updates and remote technical support

3-Year on Dell Manufactured Computer PC and Monitor

1-Year on Router Manufacturer Warranty (if applicable)

6-Month on Battery from Manufacturer Defects
