Toshiba FDX3543RPW 14x17 DR

Sold

Toshiba FDX3543RPW 14x17 DR

Description

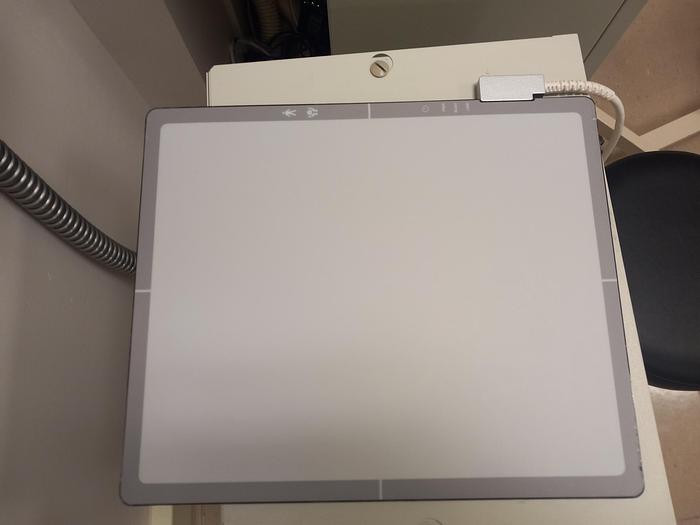

Toshiba FDX3543RPW 14x17 Wireless Flat Panel Detector

Date of manufacturing: 2017

Cassette Sized

CsI:TI screen

DQE @ 0lp/mm > 70%

Shock resistance: Carbon Fiber Plate

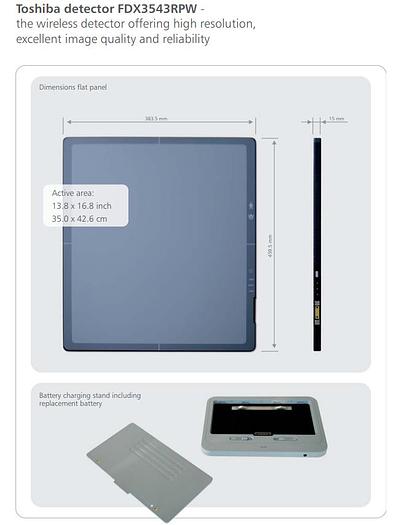

Dimensions: 383.5 x 459.5 x 15 mm

Weight of the panel including battery: 3.1kg

WiFi compliant standard: IEEE802.11n, 2.4GHz/5GHz, DFS function not available

UNIT Interface: Connect to power supply

DC input voltage: DC16V 3A

Pixel pitch / Microns: 140 μm

Total pixel number: 2466 (H) x 3040 (V)

X-Ray sensitive area: 345 x 426 mm

X-Ray generator voltage range 40 to 150 kVp

A/D conversion: 14 bit

Li-ion polymer battery

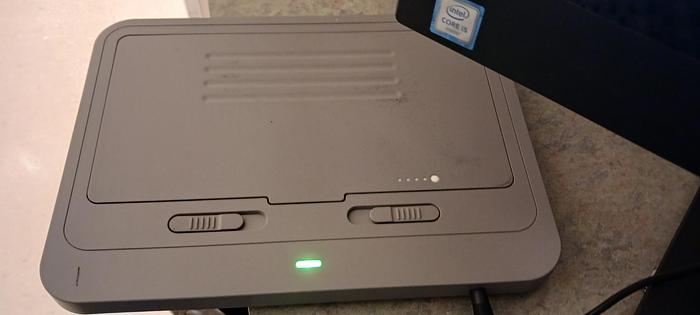

Battery charging time 3.5 h (battery charger) / 7 h (magnetic cable use)

Number of images every 20 seconds: 900 images / 12 sec cycle, 150 images / 1 min cycle

Resolution: 3.4Lp/mm

DROC

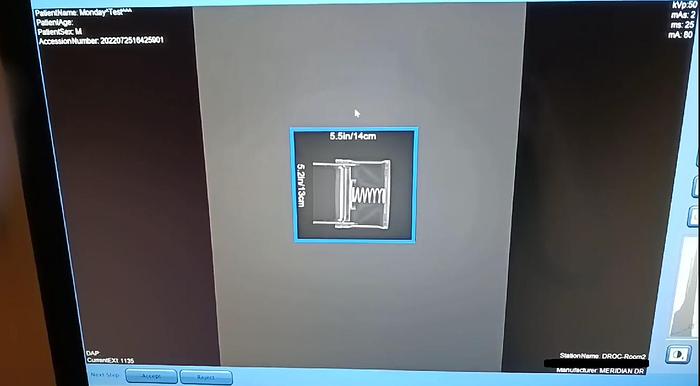

Monarch HD Image Processing Software & Workstation

Dell Computer Hardware and Monitor


-------------------------------------------------------------------------------


Eric Albring II

Medco Blue

Specifications

ManufacturerToshiba
ModelFDX3543RPW
Year2017
ConditionUsed
Stock NumberS5MO5T0224
