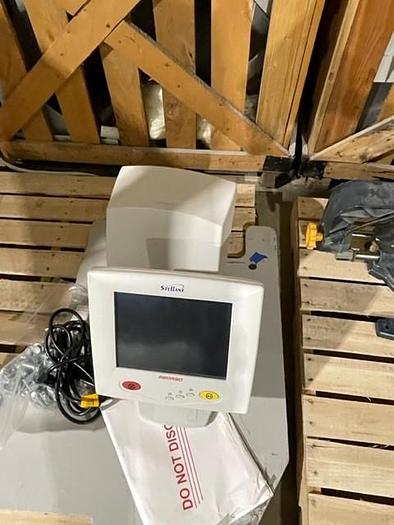

Medrad Stellant SX

Bayer Medrad Stellant Sx Features

The Bayer Medrad Stellant Sx is a single head CT intelligent and intuitive CT injection system. The Medrad injector head features a priming button and a remote arming button. The syringe utilizes a simple snap-on mechanism in any orientation. The color touchscreen on the user-interface utilizes an easy-to-read, anti-glare screen that can also store and recall up to 32 different protocols.

• 0.1 to 10 mL/sec flow rate.
• 200 mL sterile disposable syringes.
• Up to 6 different phases.
• Up to 32 stored protocols.
• Syringe heating from 95°F.

Bayer Medrad Stellant Sx Specifications

Dimensions (Single Injector Head)

• Height: 6.1 in (15.5 cm)
• Width: 8.6 in (21.8 cm)
• Depth: 14.5 in (36.8 cm)
• Weight: 12 lbs (5.4 kg)

Dimensions (Display Control Unit With Stand)

• Height: 13.5 in (34.3 cm)
• Width: 12.5 in (31.9 cm)
• Depth: 8.9 in (22.5 cm)
• Weight: 8.2 lbs (13.6 kg)

Dimensions (Base Unit)

• Height: 11.5 in (29.2 cm)
• Width: 11.0 in (27.9 cm)
• Depth: 8.8 in (22.2 cm)
• Weight: 13.6 lbs (6.2 kg)

Injection

• Flow Rate (range & increments): 0.1 to 10 mL/sec in 0.1 mL increments
• Volume (range & increments): 1 mL to syringe capacity in 1 mL increments
• Programmable Pressure Limit (psi/kPa): 200 mL syringe: 325 psi, 2241 kPa
• Scanning Delay: 0-300 seconds (5 minutes) in 1 second increments
• Pause: 1-900 seconds (15 minutes) in 1 second increments
• Hold: Maximum HOLD time is 20 minutes
• Syringes (Volume capacity): 200 mL sterile disposable syringe
• Maximum Number of Phases: 6
• Maximum Number of Protocols: 32



Miscellaneous

• Electrical Requirements (VAC/Hz): 100-240 VAC, 50/60 Hz
• Syringe Heater Range: 95 degrees F +/-9 degrees 35 degrees C +/-5 degrees
• Head Mounting Options: Overhead Counterpoise System or Floor Pedestal (Floor Pedestal includes an Integral IV Pole)
